Vehicle requirements
A reach stacker handles enormous loads on single axles and works at uneven surfaces can cause the vehicle to tilt.And Payloads are also often heavier than indicated.This requires its tires with excellent loading capacity and good stability.
The working characteristics of short distance and high working frequency lead to increased wear or in extreme cases to sudden tire failure.This require tires with good wear resistance and puncture resistance.
The vehicle works in sharply turns frequently to stock or get the containers.This will make a huge pressure for the tire inner and sidewalls.

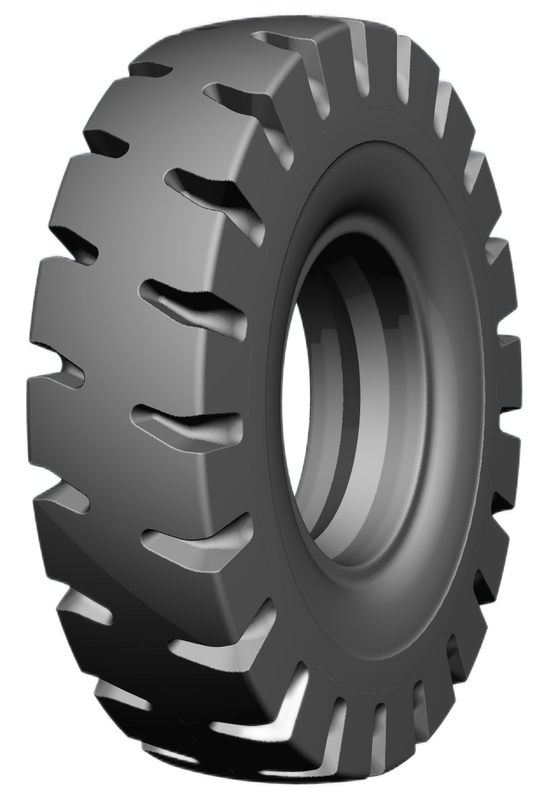

Tires Performance
Wide and robust pattern and ultra-strengh carcass design provides excellent load capacity and control stablity.
Robust extra deep tread design provides excellent wear resistance and puncture resistance to ensure vehicle safety.
High-performance 66-nylon reinforcing material provides excellent carcass and sidewall to ensure the vehicle safty working in sharply turns frequently.
High-end product:IND-4 ; Economical product: E-4J
Tire Size | Ply Rating | Speed Symbol | Tire Type | Pattern | Section Width | Overall Diameter | Max.Speed | Inflation Pressure | Max. Load | Design Rim Width | Tread Depth |
mm | mm | km/h | kPa | kg | （mm） | ||||||
18.00-25 | 40 | A5 | TL | E-4J | 500 | 1675 | 25 | 1150 | 21250 | 13.00 | 56.0 |
18.00-25 | 44 | A5 | TL | E-4J | 500 | 1675 | 25 | 1250 | 22500 | 13.00 | 56.0 |
18.00-25 | 40 | A5 | TL | IND-4 | 500 | 1675 | 25 | 1150 | 21250 | 13.00 | 72.5 |
